Compact Containerized Dewatering Unit for Saudi MBBR Wastewater Sludge

📍 Saudi Arabia · ♻️ MBBR Wastewater Treatment · 📦 Sludge Dewatering Press


Every project begins with doubts, and our job is to turn uncertainty into confidence. Here is a complete containerized sludge dewatering case from Saudi Arabia.

The Customer & Basic Conditions

A Saudi MBBR wastewater plant generates 4–5 m³ of sludge per day, with only 0.67% solid content. The client initially targeted our JXDL202 Sludge Dewatering Press, and needed a full set including sludge feed pump and polymer dosing system.
We confirmed the JXDL202 model was perfectly sized for their flow, and matched it with a Model 500 dosing unit pre-assembled on a skid, complete with pipes and valves.

The Core Concern

The client hesitated: they worried the screw press would be complicated to operate and maintain, and questioned whether it was the best choice for their site.

Step 1 — Eliminate doubts with solid advantages

We broke down the strengths clearly:

  1. High automation

    Auto-feeding, auto-dewatering and auto-discharge greatly cut manual work.

  2. Excellent dewatering performance

    Continuous screw squeezing delivers low-moisture cake.

  3. Low running cost

    Low power consumption, simple upkeep and long service life.

  4. Small footprint

    Compact structure fits tightly inside limited spaces.


We added that this mature technology outperforms plate-and-frame filter presses and other dewatering equipment, so operation and maintenance would not become a burden.

Step 2 — Fine-tune the polymer scheme

We suggested a polymer dosage of 1‰ ~ 2‰, and recommended running trials with multiple flocculants to lock in the optimal formula.

Step 3 — Customize for containerized plug-and-play

The client put forward two special requirements:
  • 75mm OD flange opening and 75mm cable sleeve to control odor leakage
  • Integrate JXDL202 press, 500 dosing unit, G20 & G30 feed pumps into one 20ft standard shipping container, forming a fully pre-built plug-and-play system.

We confirmed the layout with reserved operating space inside the container.

Final Outcome

One month after technical communication, the customer placed the formal order. In our follow-up check, the client reported stable, trouble-free operation of the whole containerized unit.

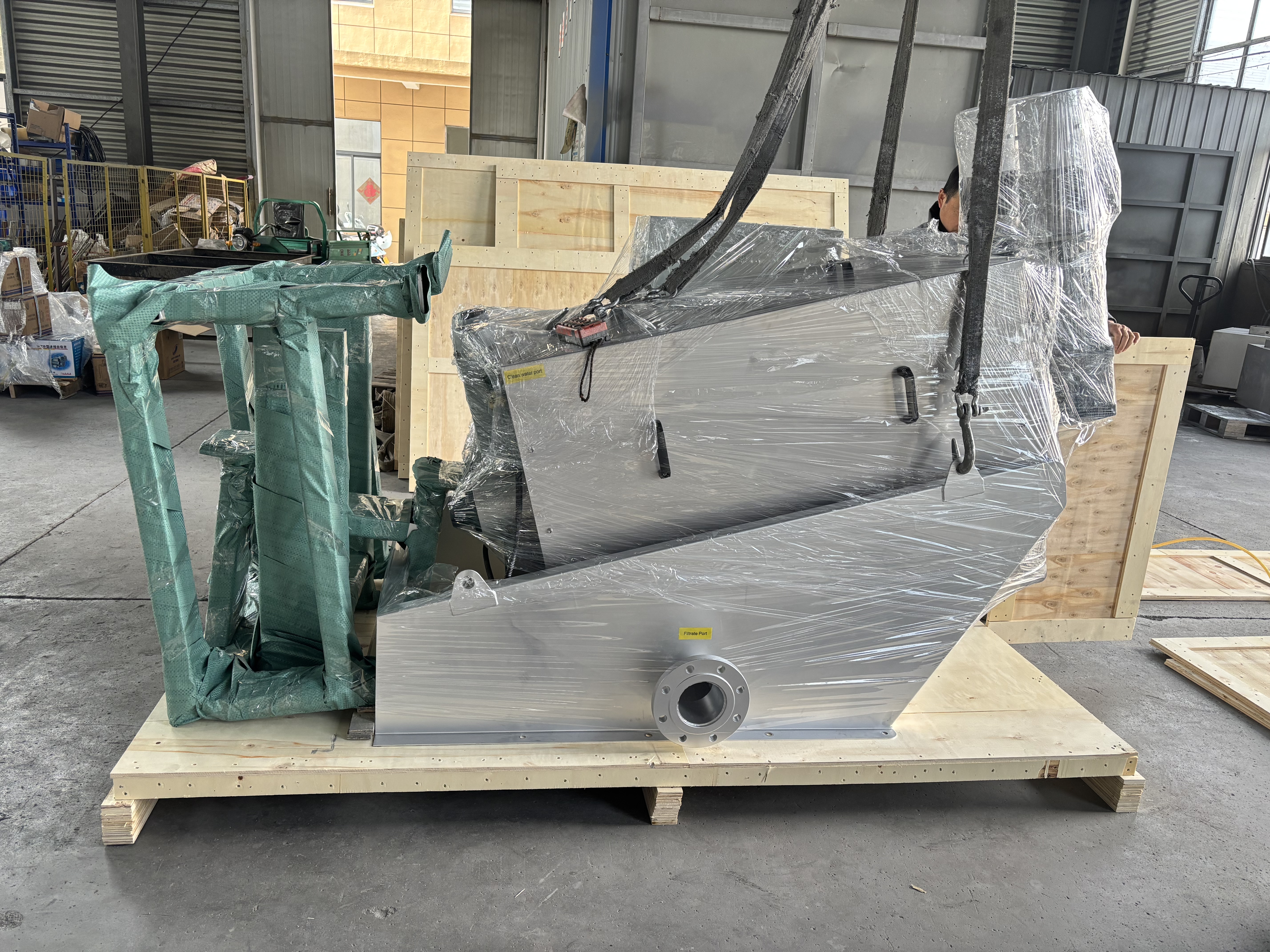

📸Take a look at what we deliver:

Our Whole Service Process

  • Evaluate sludge flow & concentration, confirm JXDL202 modelAddress worries about operation & maintenance with technical advantages
  • Provide polymer dosing advice and testing suggestions
  • Customize odor-proof openings and design the 20ft container layout
  • Deliver the fully assembled plug-and-play unit
  • Complete post-sales follow-up with positive customer feedback

If you need compact, container-mounted sludge dewatering equipment for low-concentration MBBR sludge, we can tailor an all-in-one skid system for your project.
