Sludge Dewatering Presses for the USA
📍 USA · 🏭 Organic Waste Recycling · 📦 Sludge Dewatering Press
Every dewatering project has its own character — and when a customer comes in with clear goals and a growth mindset, great things happen. Let us share a recent success story from the United States that perfectly combines practical engineering with forward-thinking planning.
The client
An organic waste recycling company in the US receives Sludge Dewatering Press from multiple poultry processing plants. Their operation runs 24 hours a day, processing approximately 5,000 gallons of sludge per hour with an incoming solids content of around 8%.
Their goal was straightforward: dewater the DAF sludge to raise solids content, reduce free water, and produce a cake that is suitable for composting and economical to transport. The sludge contains a moderate amount of fats and oils — not excessive, but enough to factor into equipment selection.
The challenge
Poultry DAF sludge is a tricky material. The combination of organic solids, proteins, and residual grease means the equipment must handle oily, sticky feed without clogging. And with 5,000 gallons per hour flowing in around the clock, reliability and continuous operation are non-negotiable.
Composting adds another layer of requirements: the cake should be dry enough to avoid free liquid runoff, but does not need to be bone-dry — a balanced moisture content actually supports the composting process.
Step 1 — Assessing the real-world volume
After reviewing their flow data and sludge characteristics, we confirmed that a single 403 Sludge Dewatering Press would comfortably handle their current throughput. The 403 model is built for high-volume industrial sludge and performs reliably on DAF streams with moderate oil and grease content.
But there was more to the picture.
Step 2 — Planning for growth
The customer was upfront about their strategy: they are already receiving material today, but they are actively expanding and bringing more poultry plants on board. Rather than buying one unit now and scrambling later, they wanted to install capacity that matches their growth roadmap.
We supported that approach. Running two 403 units in parallel gives them:
- Sufficient capacity for current volume with headroom
- Redundancy so production never stops during maintenance
- The flexibility to ramp up as new waste streams come online
Step 3 — An all-in-one integrated system
To make installation and operation as smooth as possible, each unit is supplied as a complete integrated system in SS304 stainless steel, including:
- 403 Sludge Dewatering Press main dewatering unit
- Polymer dosing system for consistent flocculation
- Dosing pump for precise polymer feed
- Sludge feed pump for steady inlet flow
This turnkey package means everything is sized, matched, and tested to work together — no guesswork on site. SS304 construction offers excellent durability for organic sludge with light grease content and keeps the project within budget.
Step 4 — Matching the dewatering target to composting needs
One point we clarified early on: composting does not require the driest possible cake. In fact, cake that is too dry can slow down microbial activity. What matters most is eliminating free-standing water so the material is easy to handle, transport, and incorporate into windrows.
Our 403 Sludge Dewatering Press delivers exactly that — a consistent, dewatered cake with minimal free moisture, perfectly suited for composting operations.
The outcome
The customer placed an order for two 403 Sludge Dewatering Press in SS304 stainless steel. Both units are now in production and will be ready to support their expanding recycling operation across multiple poultry processing facilities.
A clear process from start to finish
- Customer shares sludge profile, flow rates, and growth plans
- We confirm the Sludge Dewatering Press suitability and recommend the 403 model
- We outline single-unit vs. dual-unit scenarios and integrated system options
- Customer selects two integrated 403 units in SS304
- We manufacture, pre-test, and prepare for shipment

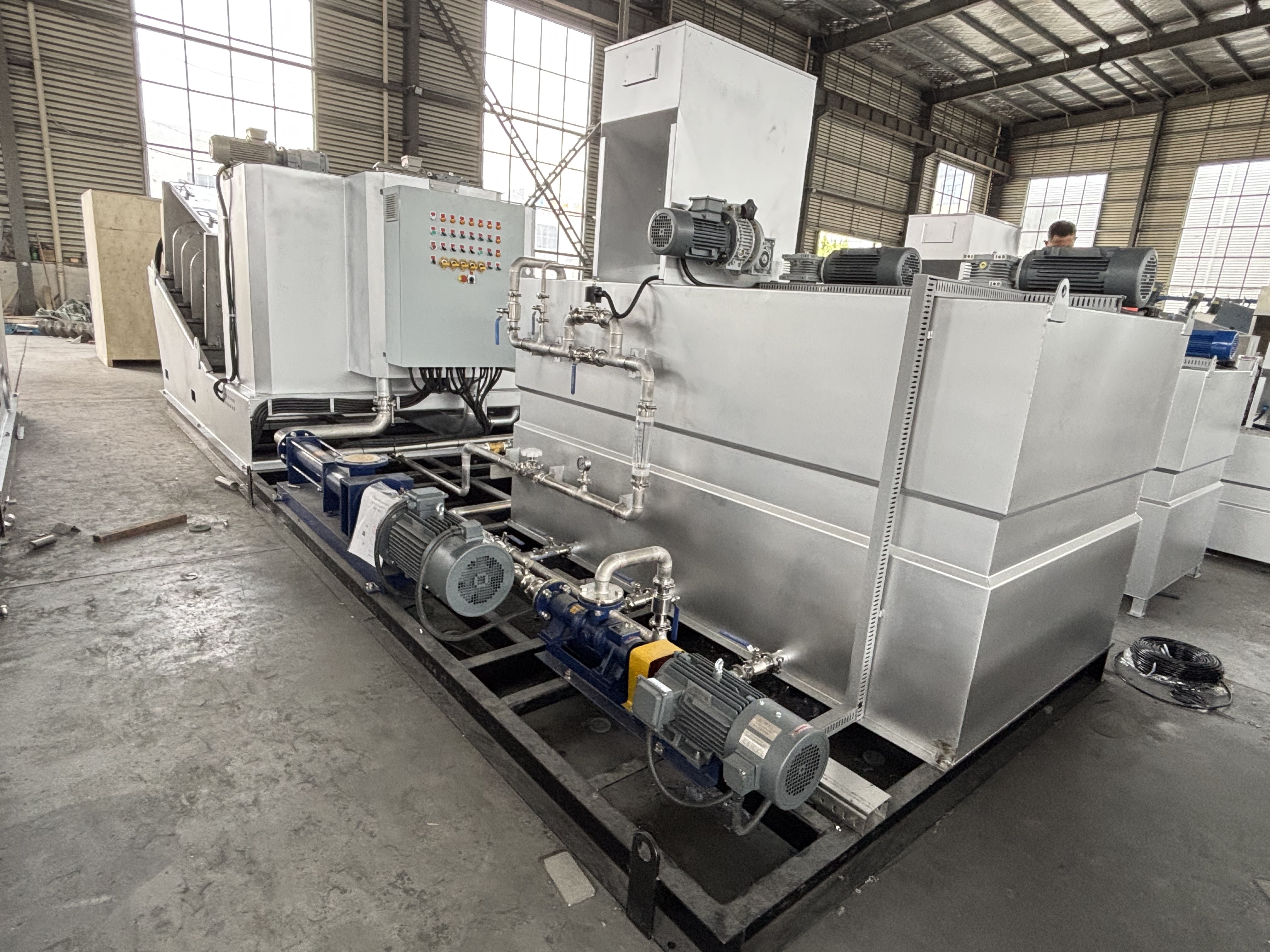

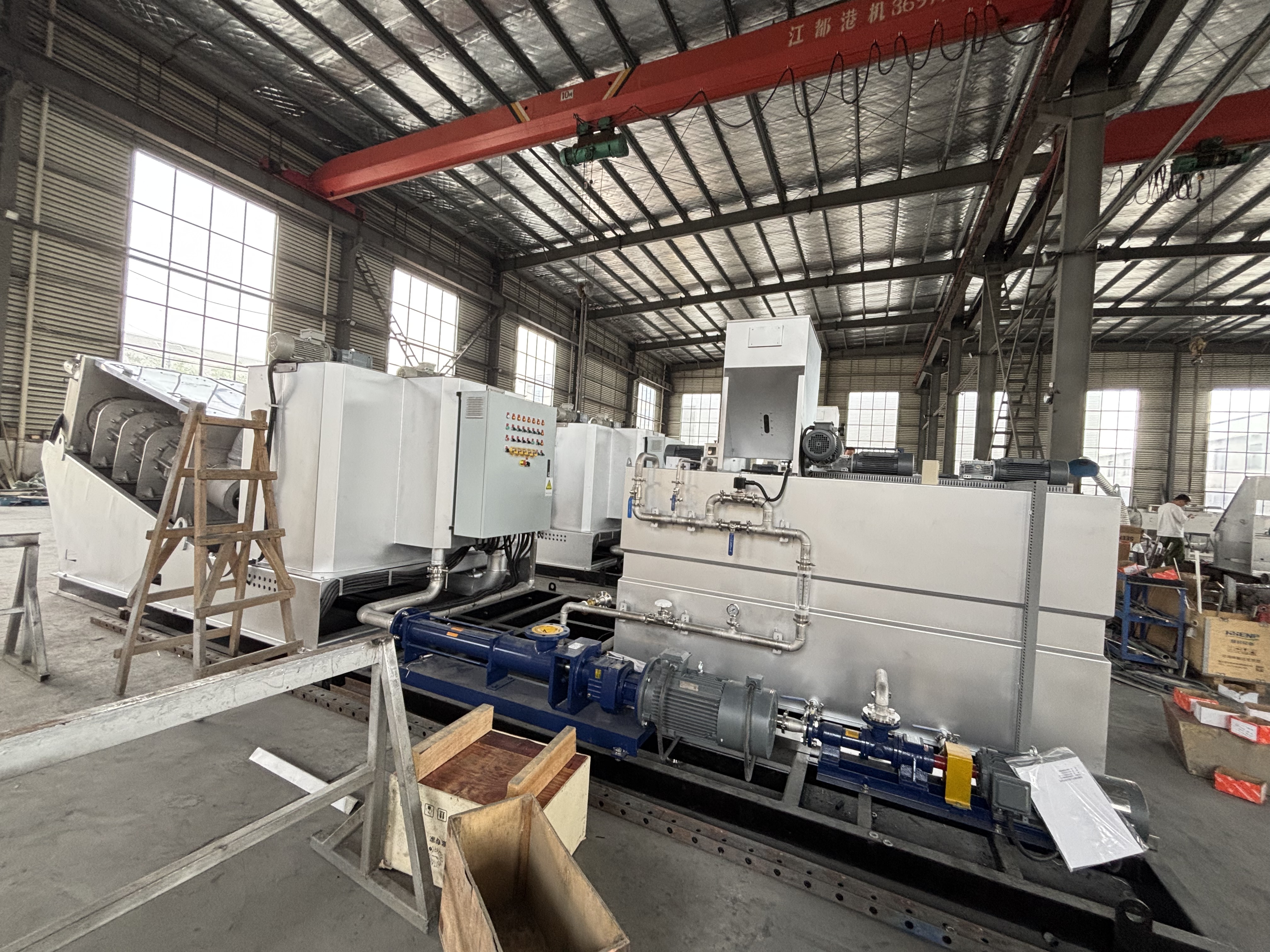

📸Take a look at what we deliver:
We are looking forward to seeing these two machines running side by side, supporting sustainable organic waste recycling across the US.
If you are working with DAF sludge — whether from poultry, food processing, or industrial sources — and need a dewatering solution built for real-world operation, we would be glad to walk through your process and find the right setup for you.
